Booting a recent kernel on the Pogoplug Series 4 (also some hacking and poking)

Last test 2024-01-03 using OpenWrt (kernel v5.15)

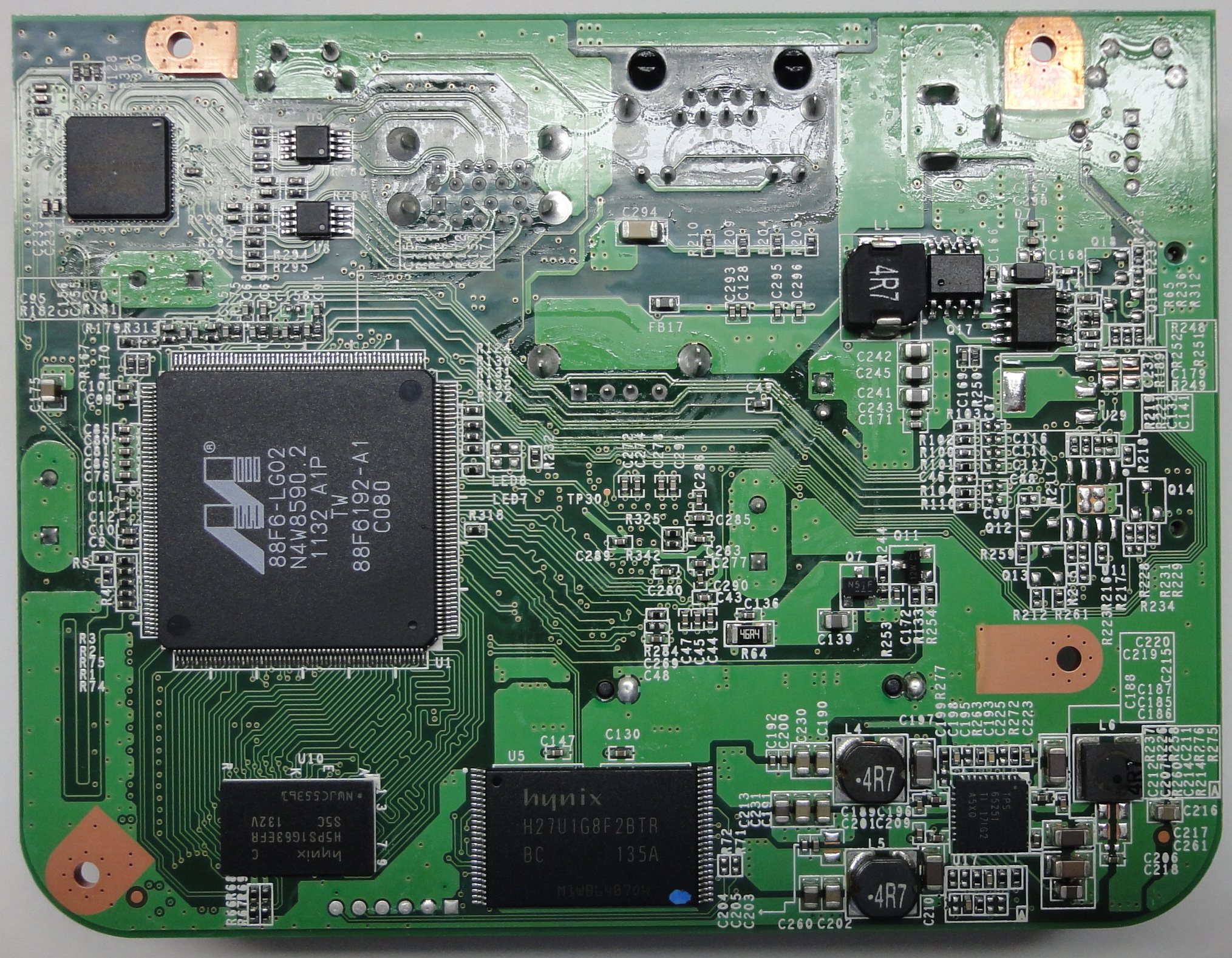

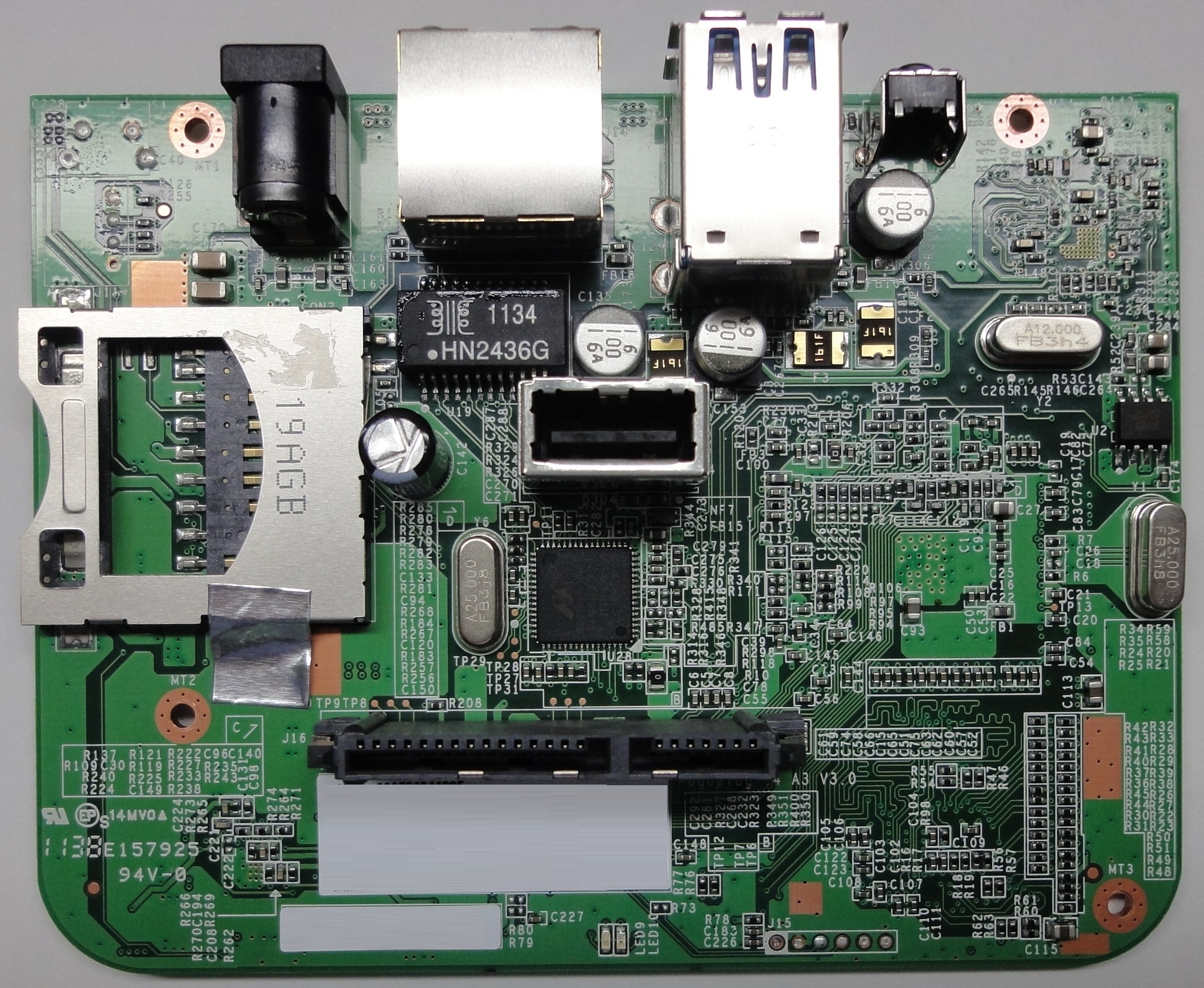

PogoPlug breakdown

Hardware

Install OpenWrt

OpenWrt supports this device fine, and it is what I am using these days. Check the device page at OpenWrt for more information.

Stuff I install:

  opkg update
  opkg install luci ksmbd-server kmod-usb-storage block-mount yt-dlp e2fsprogs cryptsetup openssh-sftp-server unrar hdparm
I then set up a script in /etc/board.d/04_hdparm to run hdparm -S 12 /dev/sdN over all local disks like this:

# SPDX-License-Identifier: GPL-2.0-only
# Spin down drives after one minute if inactive

if [ ! -n "$(command -v hdparm)" ]; then
  exit 0
fi

DISKS=$(find /dev/sd[a-z] 2>/dev/null)
for DISK in $DISKS
do
  if [ -b $DISK ] ; then
    hdparm -S 12 $DISK > /dev/null
  fi
done

Install ArchLinux

WARNING: this is historical information. The ARMv5 support was deleted from ArchLinuxARM and they no longer support the target.

This page at ArchLinux details how to install a system from scratch. They make some assumptions, and for example try to download the whole distribution archive into /tmp which will not work. Download it to the target device and untar it there instead.

What ArchLinux finally does when you run the script ppv4-install.sh is to write a second U-Boot at offset 0x100000 (halfway into the U-boot partition in flash, see below) and making the factory-installed U-Boot first look for IDE and USB devices to boot fromm and if that fails (typically because they are not formatted with ext2) load and run this second U-Boot, provided by ArchLinux. The second U-Boot has extended capabilities. It modifies the bootloader parameters using /usr/local/cloudengines/bin/blparam which comes with CloudEngines installation.

Setting up swap: a locale-gen problem

Sometimes locale-gen dies under update because it runs out of memory. This can happen if you're just running samba or minidlna as well. So better safe than sorry. Set up swap. Solve this by enabling a temporary swap file (as root):

Make the change permanent by not disabling adding the swapfile your /etc/fstab like this:

/swapfile none swap defaults 0 0

Installing and starting SAMBA

If you want to use the pogoplug as a NAS then you want SAMBA installed.

Installing and starting ReadyMedia/minidlna

If you want to access your media files from a DLNA device such as a Samsung TV.

Build a custom kernel

Boot with a custom kernel

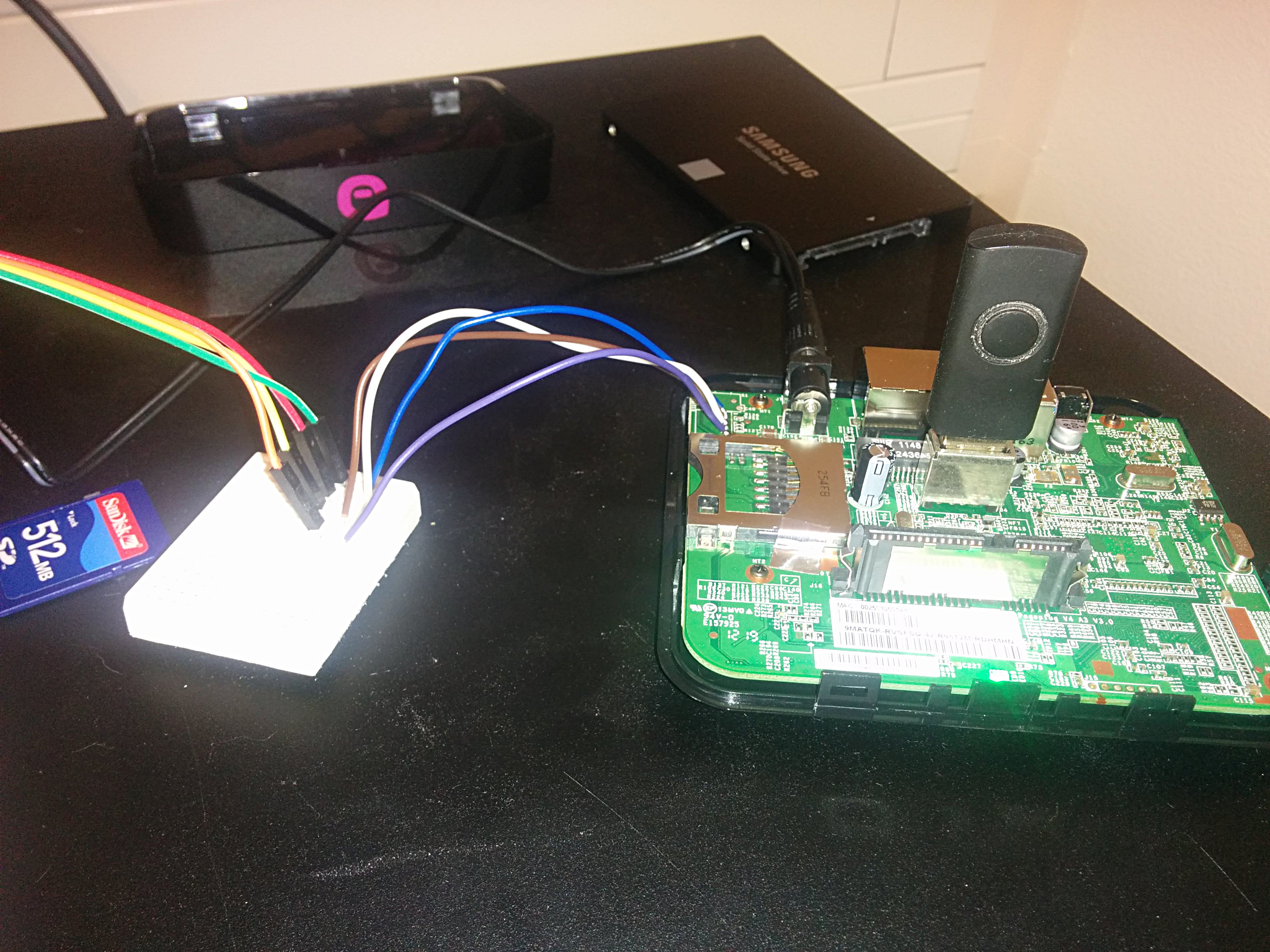

Using the serial port, I hit ENTER when the U-Boot prompt comes up like this:

  U-Boot 1.1.4 (Oct  1 2011 - 12:06:06) Cloud Engines 1.1.2 (3.4.27) PHYADDR=0

  U-Boot code: 00600000 -> 0067FFF0  BSS: -> 006918B4

  Soc: 88F6192 A1 (DDR2)
  CPU running @ 800Mhz L2 running @ 400Mhz
  SysClock = 200Mhz , TClock = 166Mhz

  DRAM CAS Latency = 3 tRP = 3 tRAS = 8 tRCD=3
  DRAM CS[0] base 0x00000000   size 128MB
  DRAM Total size 128MB  16bit width
  Addresses 8M - 0M are saved for the U-Boot usage.
  Mem malloc Initialization (8M - 7M): Done
  NAND:128 MB
  Flash:  0 kB

  CPU : Marvell Feroceon (Rev 1)
  CLOUD ENGINES BOARD: PPV4A3

  Streaming disabled
  Write allocate disabled


  USB 0: host mode
  PEX 0: PCI Express Root Complex Interface
  PEX interface detected Link X1
  Net:   egiga0 [PRIME]
  Hit any key to stop autoboot:  0
  CE>>
  CE>>

At this CE>> prompt copy/paste a commandline like this:

  CE>> setenv bootargs console=ttyS0,115200n8 root=/dev/sda1 rw rootwait rootfstype=ext4;setenv serverip 192.168.1.1;setenv ipaddr 192.168.1.2;setenv bootfile uImage;tftpboot 0x00800000;bootm 0x00800000

This will set up the boot arguments so that we use /dev/sda1 as root filesystem, then load the kernel from a TFTP server and boot it. If you have both USB and SATA devices plugged in, either can become sda or sdb figure it out.

Poke around in flash

The flash partitions should appear as /dev/mtd0 .. /dev/mtd4 and physically look like displayed in dmesg:

  [    0.857554] nand: device found, Manufacturer ID: 0xad, Chip ID: 0xf1
  [    0.862580] nand: Hynix H27U1G8F2BTR-BC
  [    0.865097] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
  [    0.871526] Scanning device for bad blocks
  [    0.969082] 5 ofpart partitions found on MTD device orion_nand
  [    0.973587] Creating 5 MTD partitions on "orion_nand":
  [    0.977425] 0x000000000000-0x000000200000 : "u-boot"
  [    0.982870] 0x000000200000-0x000000500000 : "uImage"
  [    0.988115] 0x000000500000-0x000000800000 : "uImage2"
  [    0.993329] 0x000000800000-0x000001000000 : "failsafe"
  [    0.998763] 0x000001000000-0x000008000000 : "root"

The first two are pretty self-explanatory. uImage2 is a rescue/fallback kernel (just a copy of the first uImage), I have no clue about failsafe, but it contains UBIFS markers. root is obviously the root filesystem in UBIFS format.

Poke around in UBIFS

The onboard 128MiB flash has a rootfs with the CloudEngine default firmware. Maybe you just want to leave that sitting there, because the flash is too small to host ArchLinux (which is around 1-2 GiB) or any other full distribution. Of course you can make a smallish BusyBox installation just like CloudEngine does.

You find a boring filesystem with Busybox, Dropbear (SSH), gdbserver (!), and some custom CloudEngine software in /mnt/usr/local/cloudengines/bin, where you can just from filenames tell that they have spent some time on supporting HFS, NTFS 3g, ffmpeg (thumbnails? transcoding?), ppsync (which I guess is what connects to their cloud service), and for some reason MediaTek RT3070 wireless USB adapters. There is also the custom kernel module XCE, which seems (to me) like a completely needless replacement for proper userspace ABIs that already exist, e.g. reimplementation of the already existing Marvell "poweroff" and watchdog by poking directly in the Marvell system controller, and a GPIO interface reimplemting /sys/class/gpio/* export. Maybe some of it is due to this old kernel lacking some of that support, but I don't know. Actually it seems it would be simple to take the latest mainline kernel and compile XCE for it and run this CloudEngine application.

Install the custom kernel into flash

Do you care about the original Cloudengines firmware? Do you like their nifty cloud service and Android apps to access files? Then this is obviously not for you. I just see this box as a piece of hardware that I wanna play around with and get to do my stuff.

However, CloudEngines have cleverly put two copies of their kernel into the flash. One copy at 0x200000-0x500000 and another copy at 0x500000-0x800000. So if you overwrite one of them with your custom kernel, the other one will still be there.

The two partitions used for uImages are too small for an upstream Marvell Kirkwood kernel. We could try to strip our kernel down but .... aecch. Too much work. I like my 4.1 MB kernel. Since I'm not using the root filesystem, I'm just going to overwrite that. Maybe make a backup first.

Needless to say this procedure require serial console access.

Using the hardware crypto engine

The crypographic AES engine in the Marvell Kirkwood SoC will accelerate and offload cryptographic operations on the PogoPlug, but then think about using the right cipher. This works to encrypt an entire drive on /dev/sdb:

    cryptsetup -v --cipher aes-cbc-plain /dev/sdb
    cryptsetup open /dev/sdb storage
    dd if=/dev/zero of=/dev/mapper/storage bs=1M
    mkfs.ext4 /dev/mapper/storage
    mkdir /mnt/storage
    mount /dev/mapper/storage /mnt/storage


As you can see the key is to use cipher type aes-cbc-plain since the LUKS default aes-xtc-plain64 isn't properly supported by the hardware engine.

Kernel TODO

Unmodified firmware logs:

uname -a:

Linux Pogoplug 2.6.31.8 #5 Wed Sep 28 12:09:12 PDT 2011 armv5tel GNU/Linux

cat /proc/cpuinfo:

  /proc # cat cpuinfo
  Processor: Feroceon 88FR131 rev 1 (v5l)
  BogoMIPS: 799.53
  Features: swp half thumb fastmult edsp
  CPU implementer: 0x56
  CPU architecture: 5TE
  CPU variant: 0x2
  CPU part: 0x131
  CPU revision: 1

  Hardware: Feroceon-KW
  Revision: 0000
  Serial: 0000000000000000

dmesg:

0:rootfs ubi.mtd=4,2048 rootfstype=ubifs
[    0.000000] PID hash table entries: 512 (order: 9, 2048 bytes)
[    0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
[    0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Memory: 128MB = 128MB total
[    0.000000] Memory: 118356KB available (3852K code, 261K data, 124K init, 0K highmem)
[    0.000000] Hierarchical RCU implementation.
[    0.000000] NR_IRQS:128
[    0.000000] Console: colour dummy device 80x30
